♦.The tire recycling production line is widely used for producing variety rubber products, like playground runway, modified asphalt, rubber floor, rubber tube, rubber overshoes etc.

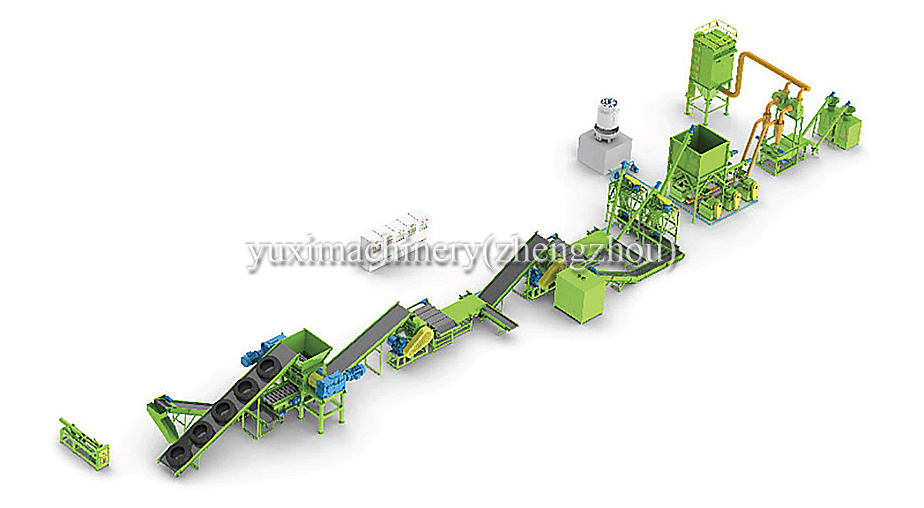

♦.Main machines: twin-shaft machine--steel wires separate machine--magnetic separator--high-speed crusher--vibrating screening machine--dust collection--rubber grinding machine, etc.
♦.Final product:granules 2-4mm, powder 40-120mesh.fiber,steel.

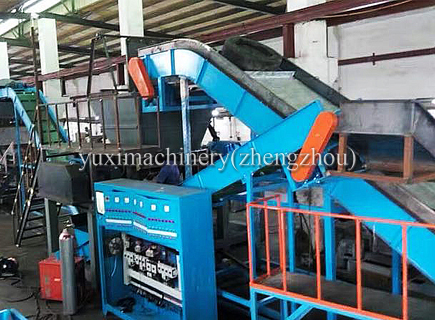

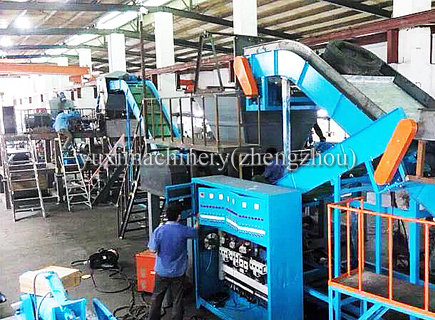

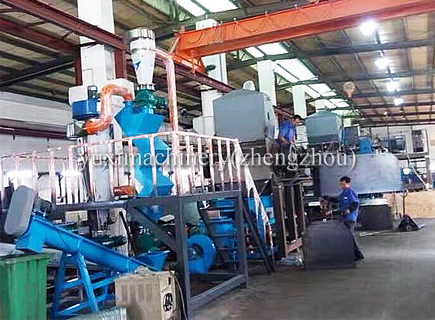

We can provide the working sites of our customers' in various countries, please contact us if necessary.

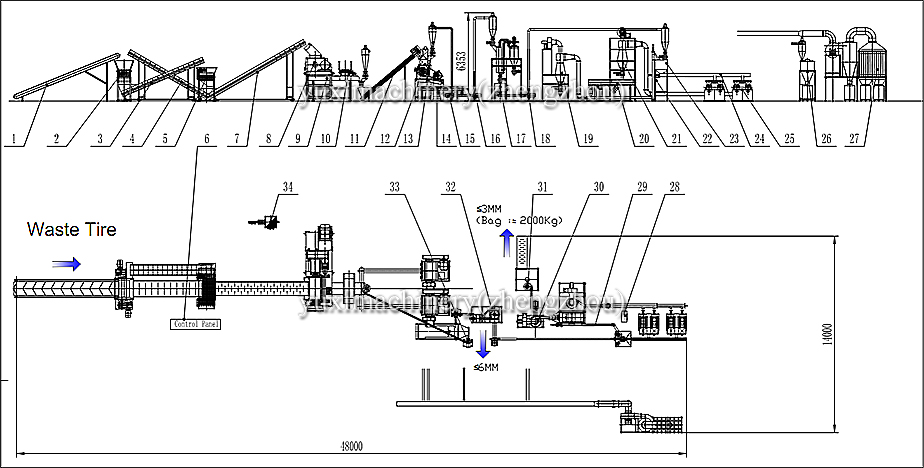

Tire Recycling Process

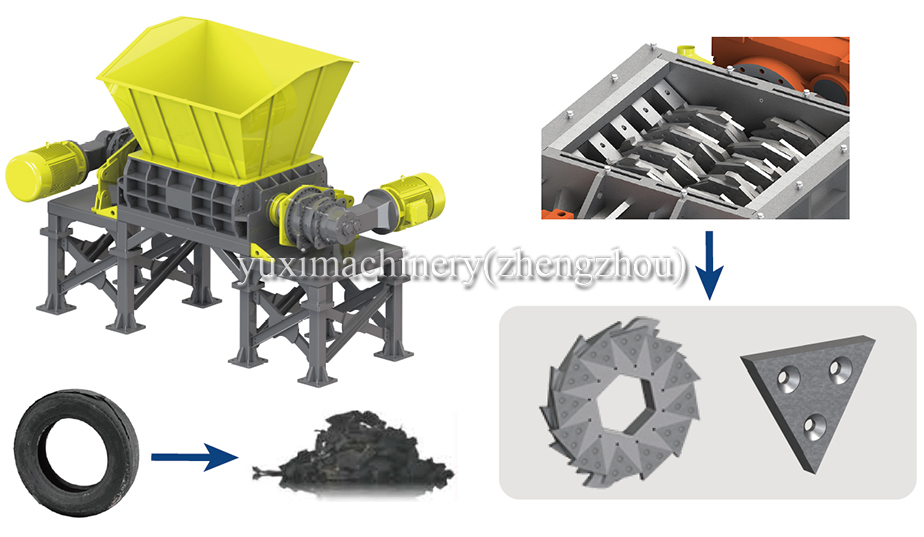

The Twin-shaft Machine
♦ The twin-shaft machine preprocesses the entire tire into approximately 50-80 mm rubber crumb.
Steel Wires Separate Machine
♦ The tire chips were further processed into less than 20 mm by serrated knife. 96% of the steel wires had been separated from the tire during this step of treatment.
♦ The magnetic metal removal rate reaches 99.7% through the combination of suspended magnetic separator and magnetic roller magnetic separator.
♦ The tire rubber block can be processed into 2-7mm particles , the nylon and the fiber are removed 99.6% by a dust remover.
Vibrating Screening Machine
♦ The broken material is divided into upper sieve and under sieve by the standard 3 mm hole diameter to ensure the purity of the subsequent sorting process.
♦ Dust collection system can collection dust and fibers by the air pipe when the crushing machine working.
Automatic Weighing Balers
♦ After the final product granules are loaded into kraft paper bags at 25Kg--50Kg, they are automatically sealed and sutured. The weight error per bag is exactly 0.2%. Bagging. Speed is 80-180 bags/hour.
