4000mm Waste Tire Crusher Machine
♦.The rubber crumbs, steel and fibre can be separated by our tyre shredder machine automatically.
♦.Adopts PLC control system, and it is simple and easy to control and maintain, for example, it only needs 2-4 person to operate a tire shredder machine with capacity of 500-10,000kg/h.
♦.Low energy consumption, long service life, high utilization, multiple maintenance.
♦.User-friendly design, safe and secure.
♦.Adopts PLC control system, and it is simple and easy to control and maintain, for example, it only needs 2-4 person to operate a tire shredder machine with capacity of 500-10,000kg/h.
♦.Low energy consumption, long service life, high utilization, multiple maintenance.
♦.User-friendly design, safe and secure.

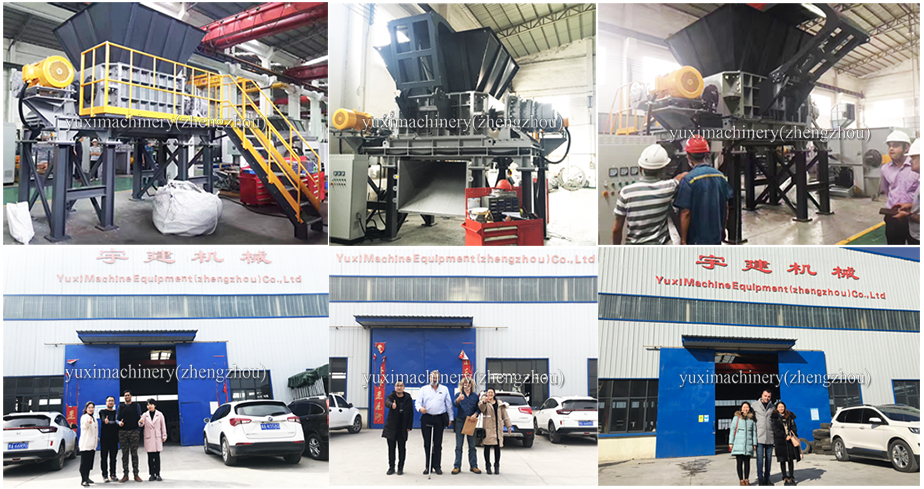

We can provide the working sites of our customers' in various countries, please contact us if necessary.

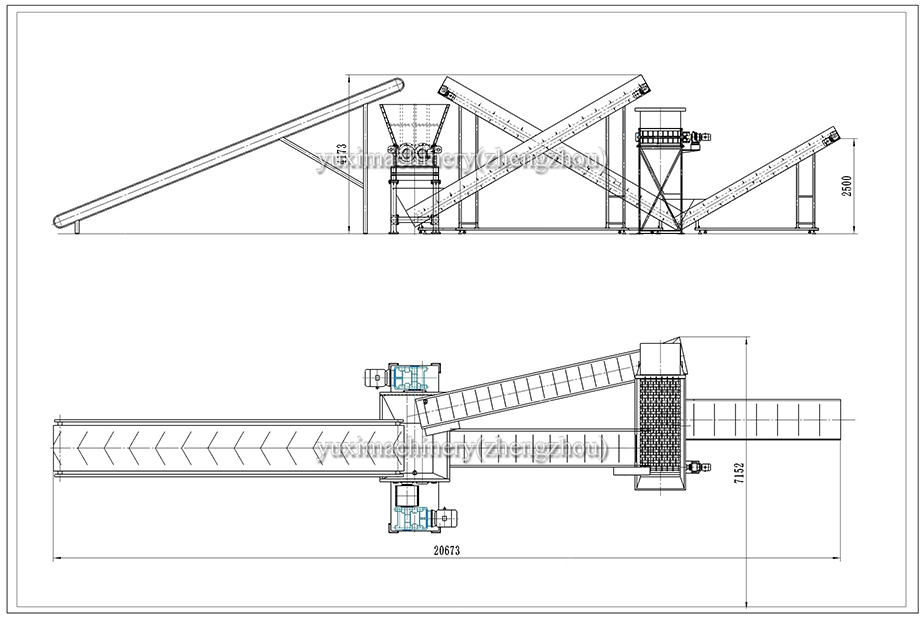

Structure Diagram
Introduction to Tyre Crusher Machine
Tyre crusher machine is our famous product with advanced technology and various capacity. We are waste tire crusher machine manufacturer, and can provide customers equipment in factory price. At general temperature, waste tire/tyre can be directly put into the feeding mouth of the waste tire crushing machine, and be crushed into small partical with size of 50 * 50mm, and then be grinded into 10-30 meshes.
Working Principle of Waste Tire Crusher Machine for Sale
The waste tire crusher machine is designed with double shafts, and the two shafts are driven independently, so that the material is pressed when the waste tyre crusher machine is in working, so as to achieve the automatic feeding. Duo to unique structure, the cutter shafts and rotary cutters of waste tyre crusher price won’t wind shafts or jam the tire shredder for sale when they are in the low-speed and high-torque, thereby improving production efficiency. Tyre crushing machine factory or waste tire crusher machine has the characteristics of low speed, large torque, low noise, etc.Application of Waste Tyre Crushing Machine
Waste tire crushers machine are widely used to shred and crush large tires, large nylon materials, rubber materials, large fish nets, large pipes, fibers, and other large-volume wastes, such as waste leather, rubber, plastics, automobile tires, wood, tree roots, logs, branches, bark, wood scraps, wooden pallets, scrap furniture, scrap doors and windows, scrap wood boards, cardboard, scrap plywood, nailed wood boards, scrap building templates, etc.
For the same model, the output of waste tire grinding mill machine will be different for different materials.
For the same model, the output of waste tire grinding mill machine will be different for different materials.
The cutter specifications and the number of claws are also different if the discharge specifications are different.

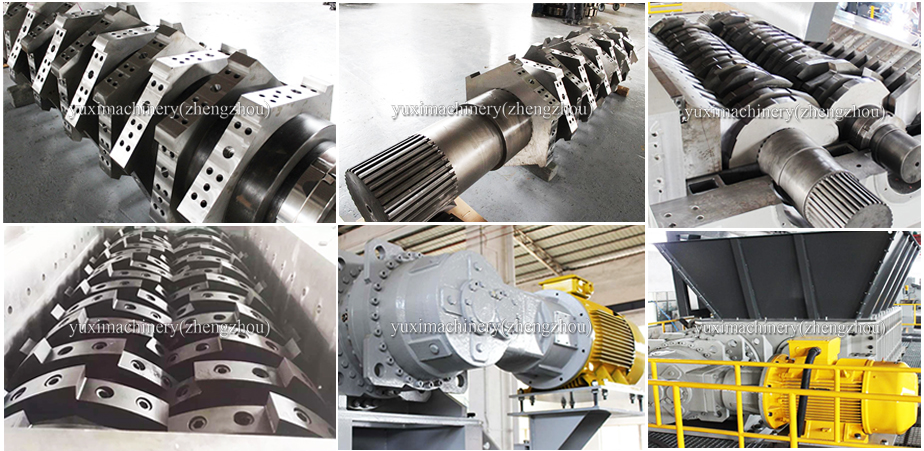

Advantages of Waste Tyre Crusher for Sale
1. The waste tire crusher price uses PLC control system, with functions of start, stop, reverse and overload automatic reverse control, which can be automatically controlled.
2. The motor + reducer drives the knife shaft to achieve a low-speed and high-torque shearing effect.
3. The bearing is sealed with six layers, which is effectively water-proof and dust-proof, and can prolong the service life of the bearing.
4. The cutters of the waste tyre crusher manufacturer is made of special alloy steel (high-speed steel or tool steel) with special processing technology, which has the characteristics of good wear resistance, high strength, and repairability.
5. The split box design helps remove the entire cutter shaft (shaft, blade, bearing, sealing system) easily and quickly.
6. The cutters are arranged in a spiral line to realize efficient cutting.
7. Both the inner hole of cutters and the spindle surface adopt a hexagonal design to realize the uniform force of cutter.
8. According to different materials and shapes of shredded materials, Yuxi waste tire granulator machine with different types of cutters can be selected.
2. The motor + reducer drives the knife shaft to achieve a low-speed and high-torque shearing effect.
3. The bearing is sealed with six layers, which is effectively water-proof and dust-proof, and can prolong the service life of the bearing.
4. The cutters of the waste tyre crusher manufacturer is made of special alloy steel (high-speed steel or tool steel) with special processing technology, which has the characteristics of good wear resistance, high strength, and repairability.
5. The split box design helps remove the entire cutter shaft (shaft, blade, bearing, sealing system) easily and quickly.
6. The cutters are arranged in a spiral line to realize efficient cutting.
7. Both the inner hole of cutters and the spindle surface adopt a hexagonal design to realize the uniform force of cutter.
8. According to different materials and shapes of shredded materials, Yuxi waste tire granulator machine with different types of cutters can be selected.
Parameter of Waste Tire Crusher
| Model | Input size | Output size | Motor power | Dimension(mm) | Capacity | Main shaft speed | weight |
| YX-900 | ≤900 | 50-300mm | 30*2kw | 3450*2100*2400 | 0.8-1.5T/h | 19rpm | 5.8T |
| YX-1200 | ≤1200 | 50-300mm | 75*2kw | 4100*2730*3300 | 2-3.8T/h | 22rpm | 15.6T |
