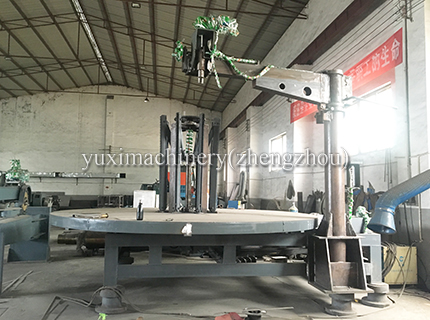

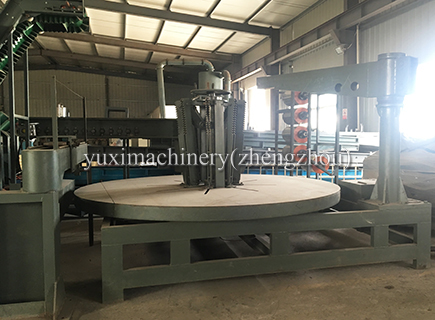

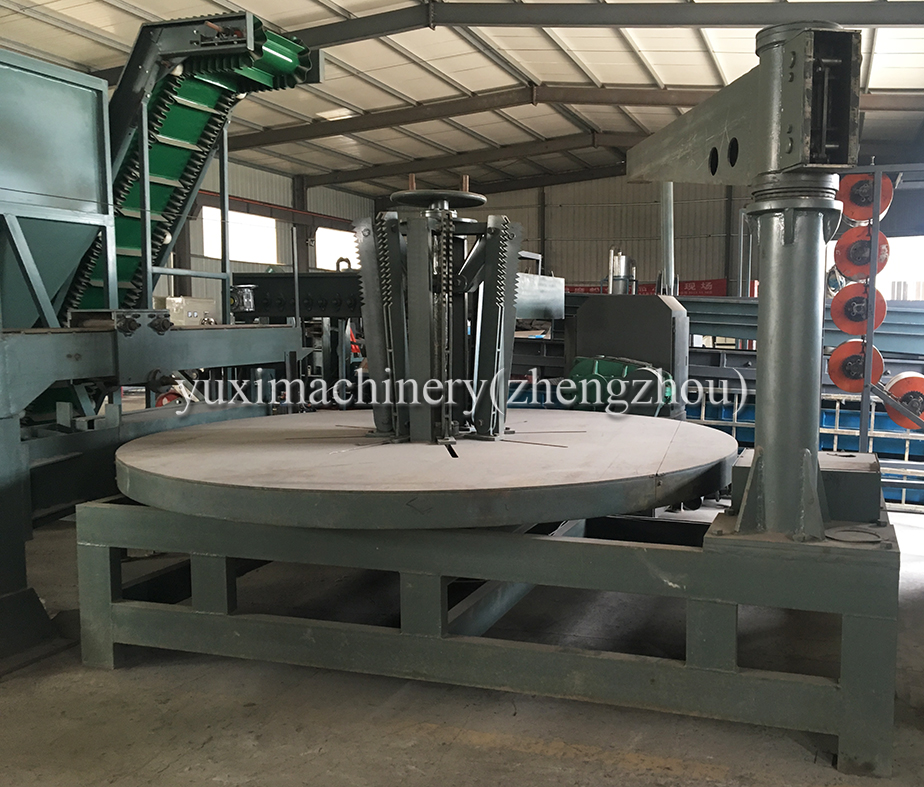

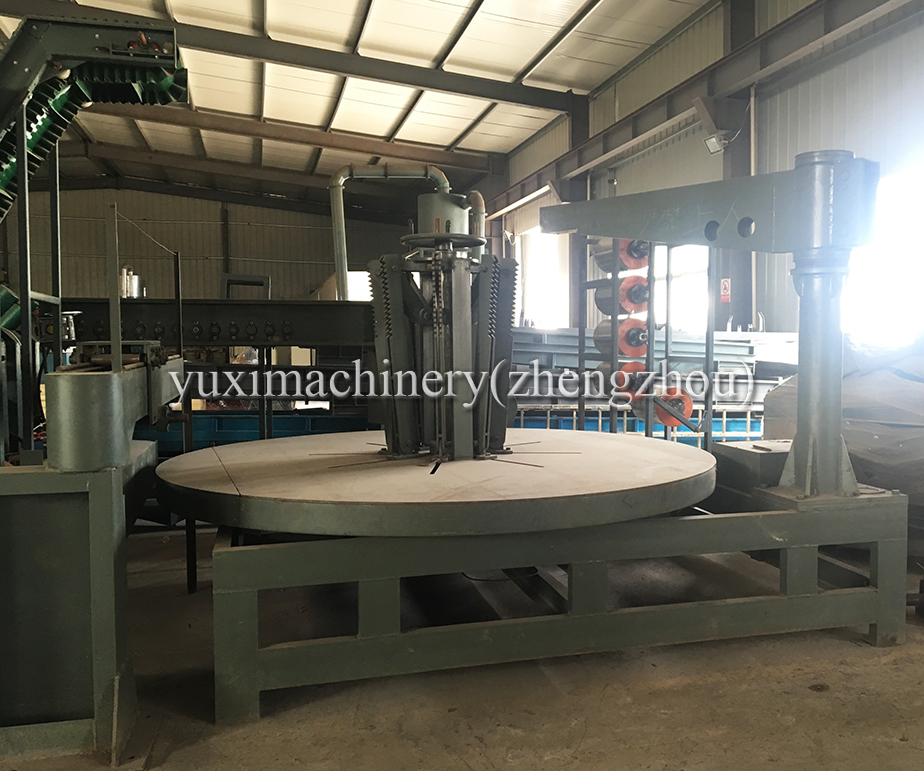

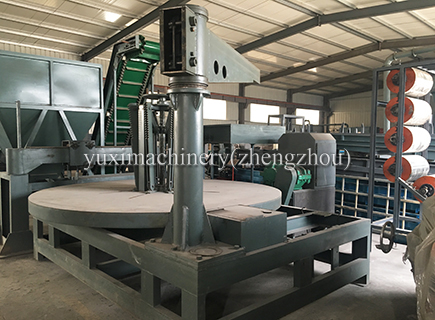

Motor power 60kw (cutting knife diameter 650mm with 6 sets of rotary table with different caliber) sidewall cutting time is 5 minutes / piece, external dimensions 4500mmX1600mmX1800mm.mechanical weight 3 tons
We can provide the working sites of our customers' in various countries, please contact us if necessary.
Operation instructions ♦ Turn on the power, first start the main motor, and wait for the motor to run normally, ready to feed; ♦ The operator puts the tire side of the cut tire on the rotating tray, starts the slitting machine, and remotely controls the rotating tray to automatically enter the cutter, and automatically cuts the cutter around the cutter. The worker only needs to remotely control the size of the strip, and cut through the strip. The tire strip cut out by the machine is introduced into the feeding port of the dicer, the cutter will automatically eat and cut into small pieces of 35mm thickness, so that the cycle operation (at the same time, please be careful not to keep the hand too close to the tool to keep the distance of 50cm or more). When the strip is cut, enter another strip, so that it can be cycled. When the bead is cut, turn off the power button. This can be done in a loop.
