Waste Tire Crusher Machine
Feeding size: 100-2,600mm or customized
Discharging size: 50-100mm
Production capacity: 0.4-60 t/h
Hardness of blades: H13: 55-60HRC; 150*150 H-type steel welded

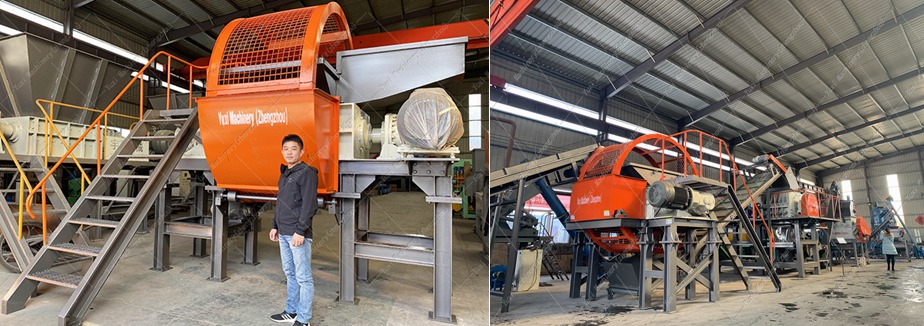

We can provide the working sites of our customers in various countries, please contact us if necessary.
Introduction to Waste Tyre Crusher Machine
Waste tyre crusher machine is our famous product with advanced technology and various capacity. We are large and small waste tire crusher machines manufacturer and supplier, and can provide customers equipment in factory price. At general temperature, waste tire/tyre can be directly put into the feeding mouth of the waste tire crushing machine, and be crushed into small partical with size of 50 * 50mm, and then be grinded into 10-30 meshes.
Working Principle of Waste Tire Crusher Machine for Sale
The waste tire crusher machine is designed with double shafts, and the two shafts are driven independently, so that the material is pressed when the waste tyre crusher machine is in working, so as to achieve the automatic feeding. Duo to unique structure, the cutter shafts and rotary cutters of waste tyre crusher price won’t wind shafts or jam the tire shredder for sale when they are in the low-speed and high-torque, thereby improving production efficiency. Tyre crushing machine factory or waste tire crusher machine has the characteristics of low speed, large torque, low noise, etc.
Application of Waste Tyre Crushing Machine

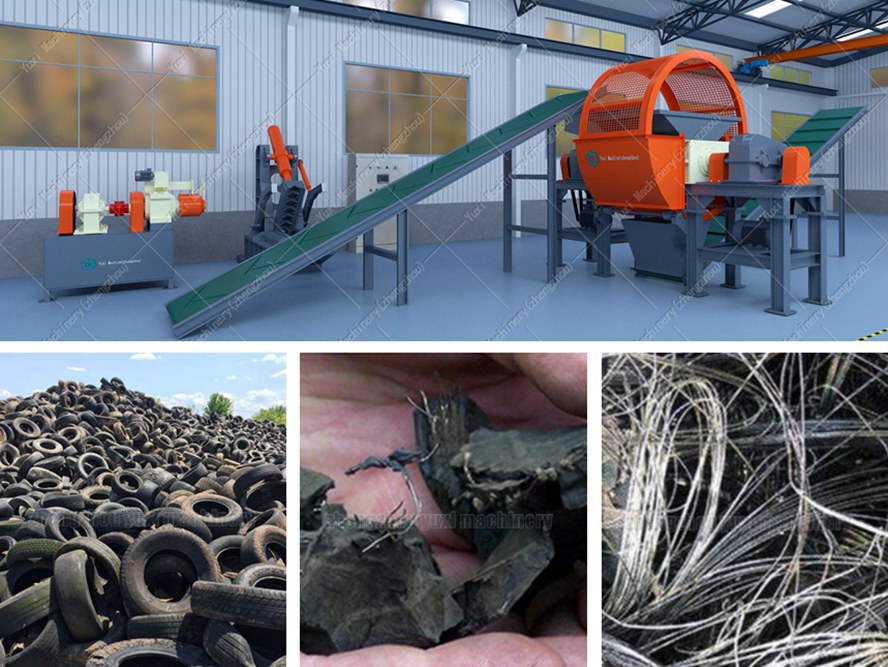

Waste tire crushers machine are widely used to shred and crush large tires, large nylon materials, rubber materials, large fish nets, large pipes, fibers, and other large-volume wastes, such as waste leather, rubber, plastics, automobile tires, wood, tree roots, logs, branches, bark, wood scraps, wooden pallets, scrap furniture, scrap doors and windows, scrap wood boards, cardboard, scrap plywood, nailed wood boards, scrap building templates, etc.
For the same model, the output of waste tire crusher machine will be different for different materials.
For the same model, the output of waste tire crusher machine will be different for different materials.
The cutter specifications and the number of claws are also different if the discharge specifications are different.
Advantages of Waste Tyre Crusher for Sale
1. The waste tire crusher price uses PLC control system, with functions of start, stop, reverse and overload automatic reverse control, which can be automatically controlled.
2. The motor + reducer drives the knife shaft to achieve a low-speed and high-torque shearing effect.
3. The bearing is sealed with six layers, which is effectively water-proof and dust-proof, and can prolong the service life of the bearing.

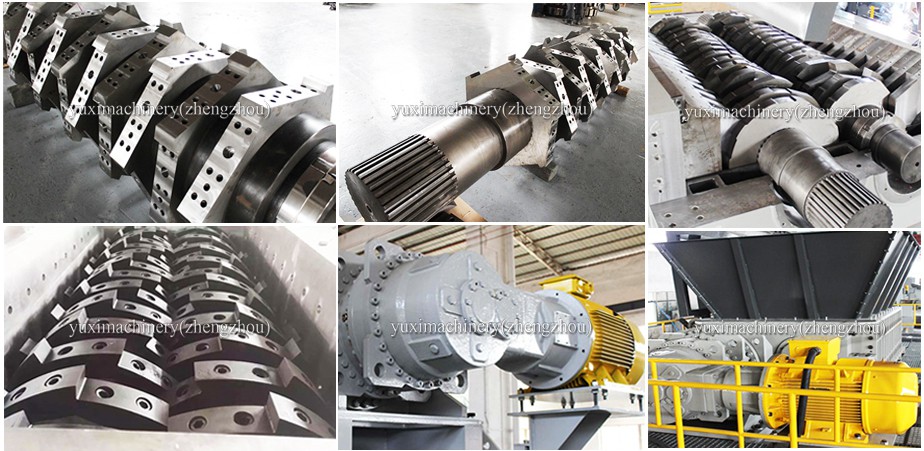

4. The cutters of the waste tyre crusher manufacturer is made of special alloy steel (high-speed steel or tool steel) with special processing technology, which has the characteristics of good wear resistance, high strength, and repairability.
5. The split box design helps remove the entire cutter shaft (shaft, blade, bearing, sealing system) easily and quickly.
6. The cutters are arranged in a spiral line to realize efficient cutting.
7. Both the inner hole of cutters and the spindle surface adopt a hexagonal design to realize the uniform force of cutter.
8. According to different materials and shapes of shredded materials, Yuxi waste tire granulator machine with different types of cutters can be selected.
2. The motor + reducer drives the knife shaft to achieve a low-speed and high-torque shearing effect.
3. The bearing is sealed with six layers, which is effectively water-proof and dust-proof, and can prolong the service life of the bearing.
4. The cutters of the waste tyre crusher manufacturer is made of special alloy steel (high-speed steel or tool steel) with special processing technology, which has the characteristics of good wear resistance, high strength, and repairability.
5. The split box design helps remove the entire cutter shaft (shaft, blade, bearing, sealing system) easily and quickly.
6. The cutters are arranged in a spiral line to realize efficient cutting.
7. Both the inner hole of cutters and the spindle surface adopt a hexagonal design to realize the uniform force of cutter.
8. According to different materials and shapes of shredded materials, Yuxi waste tire granulator machine with different types of cutters can be selected.
Parameter of Waste Tire Crusher
| Models | Power (Kw) | Capacity | Materials size | Hopper size | Weight | Dimension |
| YXS-600 | 15*2KW | 2-3T/H | 3-10CM | 0.82*0.9M | 2.5T | 2.6*2*1.9M |
| YXS-800 | 22*2KW | 3-5T/H | 3-10CM | 0.9*1.0M | 3.6T | 2.8*2*1.9M |
| YXS-1000 | 37*2KW | 5-8T/H | 3-10CM | 1.2*1.0M | 5.7T | 3*2*1.9M |
| YXS-1200 | 45*2KW | 6-10T/H | 3-10CM | 1.4*1.0M | 9.5T | 3.2*2*1.9M |
| YXS-1400 | 55*2KW | 8-12T/H | 3-10CM | 2.0*2.0M | 18T | 4.3*2*2.4M |
| YXS-1600 | 75*2KW | 12-18T/H | 3-10CM | 2.3*2.0M | 24T | 5*3*2.4M |
| YXS-2000 | 90*2KW | 16-22T/H | 3-10CM | 2.3*2.0M | 35T | 6*3.5*2.4M |
| YXS-2200 | 132*2KW | 20-26T/H | 3-10CM | 2.5*1.8 | 62T | 7*4*4.5m |
| YXS-2600 | 160*2KW | 25-60T/H | 3-10CM | 3.2*2.0 | 85T | 8.2*4*4.3m |
