Waste Tire Shredder
Feeding size: 100-2,600mm or customized
Discharging size: 50-100mm
Production capacity: 0.4-60 kg/h
Hardness of blades: H13: 55-60HRC; 150*150 H-type steel welded
We can provide the working sites of our customers in various countries, please contact us if necessary.
Machine Structure

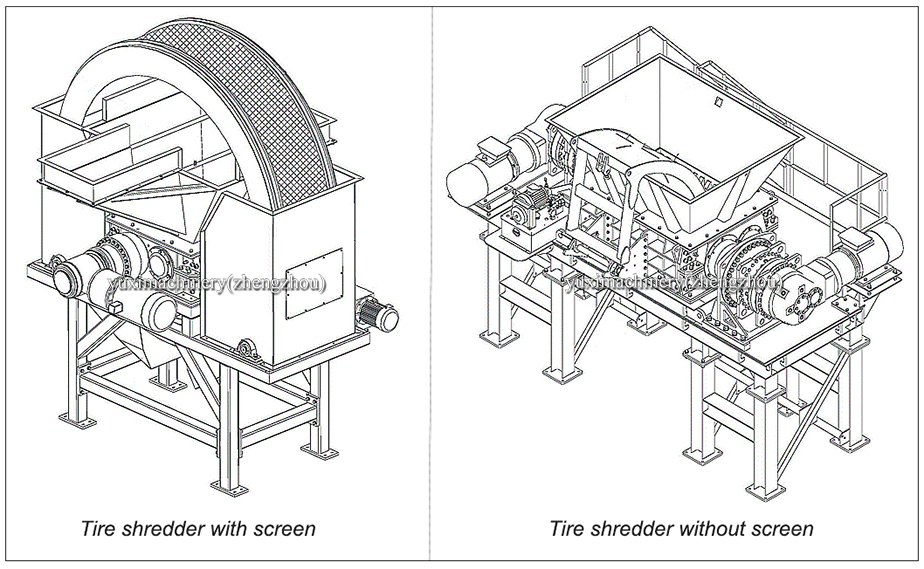

There are two types of tire shredders, without screens and with screens.
The tire shredder can break the steel radial tire and the fiber diagonal tire into a 50*50mm rubber block at normal temperature. Its structure mainly includes: electric motor, reducer, casing, cutter, screen ring, transmission mechanism, frame and so on.

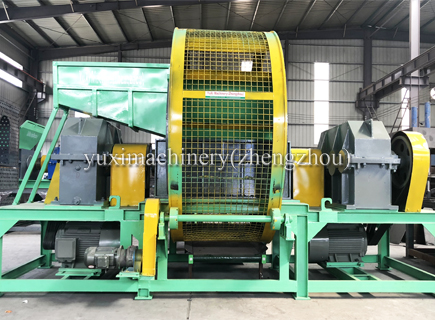

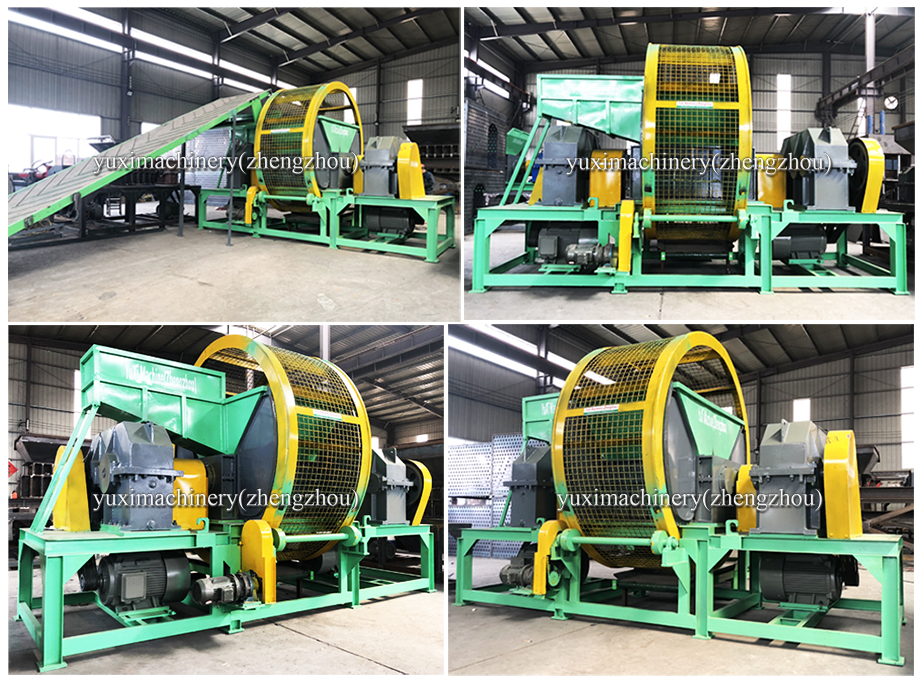

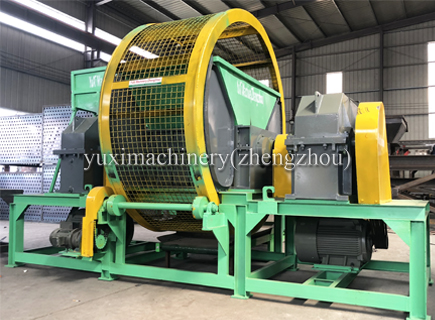

More Pictures
The waste tire shredder machine can be customized for customers according to the size of waste tire finished product.
More Details
♦.The reasonable arrangement of the blades makes the machine not Jam when shredding the tires, and the blades speed is faster and the output is higher.
Parameter

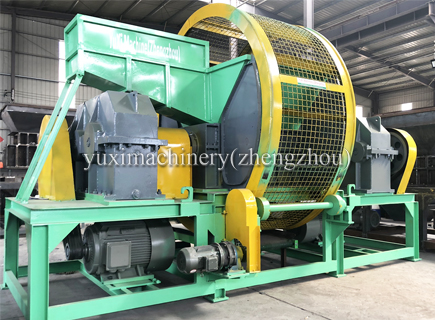

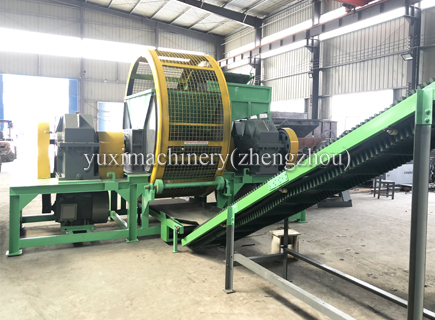

More Pictures
The waste tire shredder machine can be customized for customers according to the size of waste tire finished product.
More Details
♦.The reasonable arrangement of the blades makes the machine not Jam when shredding the tires, and the blades speed is faster and the output is higher.

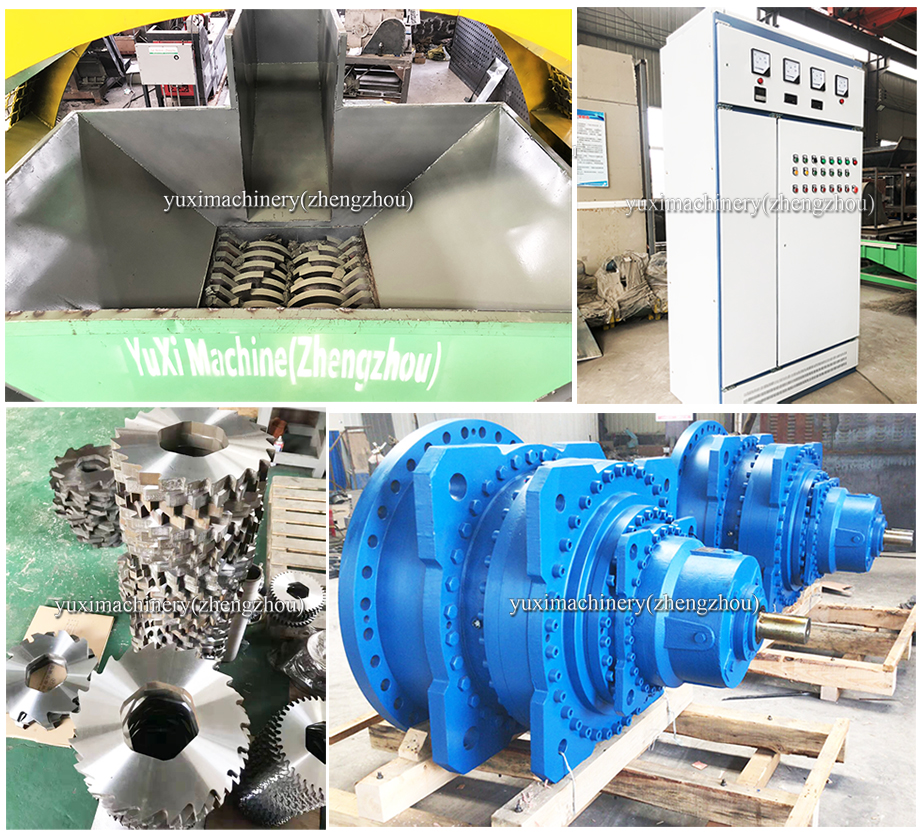

♦.PLC control cabinet adopts Chinese famous brand inverter.
♦.The tool material is SKD11 (hardness 60-65HRC). It can be used to process materials over 25,000 tons, and avaliable to be repaired and reused.
♦.The reducer is the planetary reducer, which has large torque, low energy consumption, long service life and low maintenance cost.
Parameter
| Model | YX-800 | YX-1200 | YX-1200L |
| Quantity of Blades | 16 | 24 | 24 |
| Size of Blades(mm) | ⌀460*60 | ⌀560*50 | ⌀560*50 |
| Shaft Speed(r/min) | 8/10 | 8/10 | 8/10 |
| Capacity(kg/h) | 1500 | 3000-4000 | 4000-5000 |
| Tire diameter(mm) | ≤800 | ≤1200 | ≤1200 |
| Final product size(mm) | 50*50 | 50*50 | 50*50 |
| Main motor power(kw) | 37 | 45 | 55 |
| Screen motor powder(kw) | 5.5 | 7.5 | 7.5 |
| Overall size(mm) | 4200*2100*2300 | 4600*2800*3950 | 4600*2800*3950 |
| Weight(kg) | 9000 | 16000 | 18000 |
