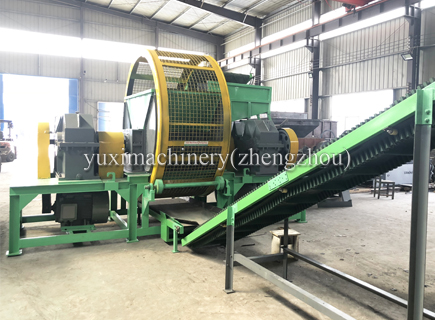

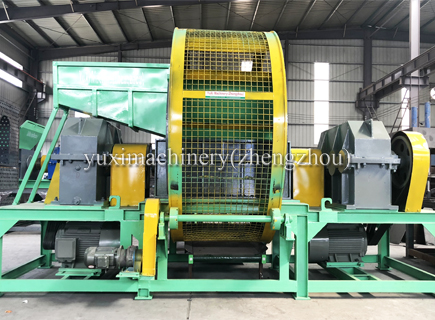

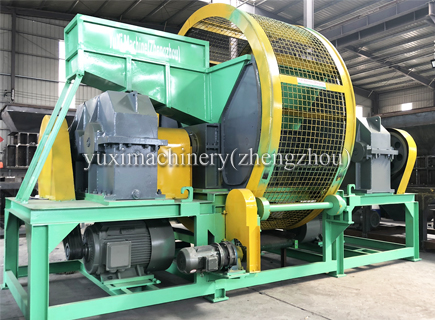

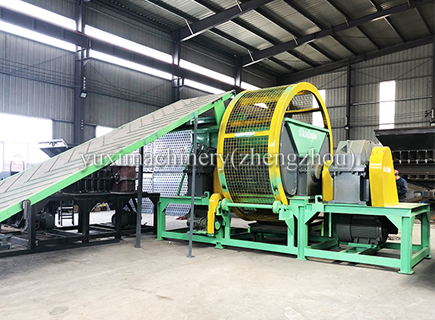

1200mm Waste Tyre Shredder Machine
♦.The rubber crumbs, steel and fibre can be separated by our tyre shredder machine automatically.
♦.Adopts PLC control system, and it is simple and easy to control and maintain, for example, it only needs 2-4 person to operate a tire shredder machine with capacity of 500-10,000kg/h.
♦.Low energy consumption, long service life, high utilization, multiple maintenance.
♦.User-friendly design, safe and secure.
♦.Adopts PLC control system, and it is simple and easy to control and maintain, for example, it only needs 2-4 person to operate a tire shredder machine with capacity of 500-10,000kg/h.
♦.Low energy consumption, long service life, high utilization, multiple maintenance.
♦.User-friendly design, safe and secure.
We can provide the working sites of our customers' in various countries, please contact us if necessary.
Introduction to Waste Tyre Shredder Machine
Tyre shredder, also can be called as waste tire shredder machine, is crushing equipment specially designed for tires with larger volume, thickness and hardness. Tire shredder machine for sale can effectively shred rubber tires, bias tires, radial tires and automobile tires. The waste tire shredding machine can directly crush any steel wire tire with a diameter less than 2,000mm, and no prior treatment is required for the tires. Portable tire shredder for sale can directly crush the bead wire, which greatly improve production efficiency and save labor.
Working Principle of Waste Tire Shredder for Sale
Motor of Yuxi waste tyre shredder for sale is drived by planetary gear reducer with a strong cutting torque. At room temperature, the material enters the cutting room and is initially cut into blocks, and then be continuously cut, pressed, frustrated, and crushed. The crushed materials pass through the automatic sorting screen, and the materials with qualified size are output, and the larger materials are sent back to shredding room for recutting, until the size is qualified and be output.
Features of Waste Tire Shredding Machine
♦ Yuxi waste tire shredder machine is with advantages of compact structure, advanced technology, low energy consumption, high efficiency, and the maintenance of tire shredder factory is particularly convenient.
♦ All parts of Yuxi waste tire granulator machine are with carbide surfacing technology, high hardness, high wear resistance, repeated repair, longer service life, etc.

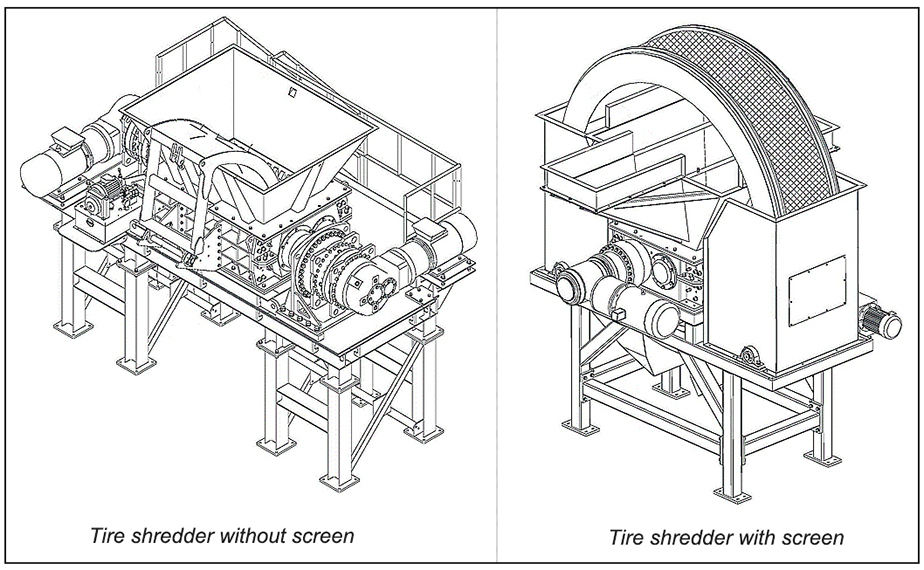

♦ Rotary screen of waste tire shredder machine is lattice structure made by steel mesh, with large blanking area, enabling the screening of qualified rubber. Very large tires can also achieve the same shredding effect!
Mechanical description: the tire and rubber ring with diameter of 900mm can be directly breaken into plastic block with size about 50-300mm.
Why Choose Us?
Yuxi double shaft tyre shredder machine is an environmentally friendly waste tire shredding and recycling equipment designed and produced by our technicians based on absorbing foreign advanced technology and accumulating many years of manufacturing experience. Yuxi is large waste tyre shredder machine manufacturer, and Yuxi waste tire shredding machine is with high efficiency, large output, reliable performance, etc., which can be widely used in the tire waste recycling industry. Yuxi waste tire shredder has passed CE certification, and all motors are Siemens brand. Yuxi waste tyre shredder uses PLC control system, with functions of start, stop, reverse and overload automatic reverse control, which can be automatically controlled.Parameters of Waste Tyre Shredding Machine
Model |
YXS-900 |
YXS-1200 |
Input size |
Less than 900 |
Less than 1200 |
Final Product size |
50-300mm |
50-300mm |
Motor power |
30*2kw |
45/55*2kw |
Dimension |
3450*2100*2400mm |
4100*2730*3300mm |
Capacity |
2-3T/h |
5-6T/h |
Screen power |
1.5KW |
5.5KW |
Main shaft speed |
19rpm |
22rpm |
Screen speed |
4rpm |
25rpm |
Number of blades |
16pcs, made of alloy steel, welded |
20pcs, made of alloy steel, welded |
Gearbox |
harden gears, large torque |
harden gears, large torque |
Weight |
5.8T |
9.6T |
