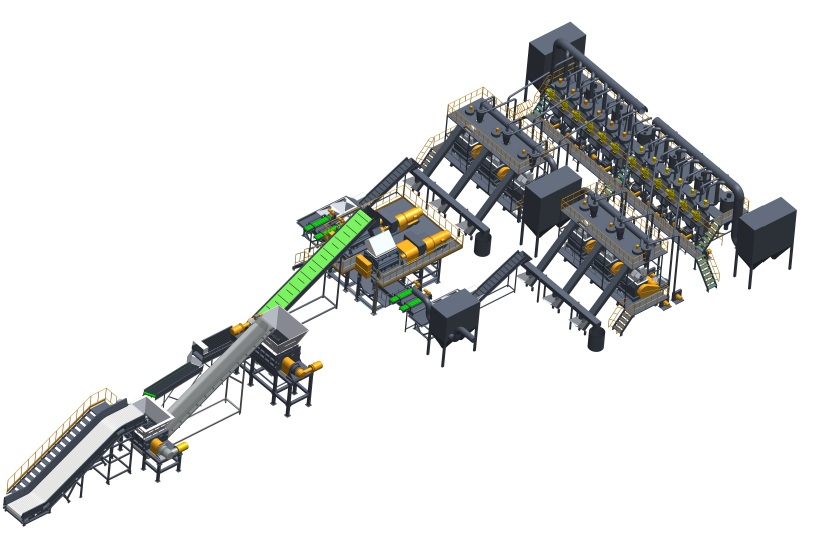

The waste tire recycling line is aimed at the waste tires of different types of cars such as cars, light commercial vehicles, trucks, and construction machinery. The tires are recycled and processed, including crushing, wire and fiber separation, to produce pure rubber particles and powder.
According to different tire characteristics and productivity requirements, the production line structure may include:

1. Fully automatic wire drawing machine: remove tire rims,

2. Conveying equipment: conveyor belt, screw conveyor and air pressure transmission system,

3. Shredder: shred the tire into the blocks (50mm-150mm),

4. Steel wire separator: Separate the rubber from the steel wire and process it into rubber particles (10mm-20mm).

5. Magnetic separator: sort steel wire from rubber steel wire mixture,

6. Crusher: Crush the rubber particles to a smaller size (1mm-7mm),

7. Vibrating sieve: sort rubber particles of different sizes, and return the oversized particles to the crusher for secondary crushing.

8. Fiber separator: remove foreign matter and fibers,

9. Secondary magnetic separator: small wires that may be left wherever you go,

10. Mill: grind the particles into powder (30 mesh-100 mesh),

11. Fully automatic bagging system: put finished products into storage bags or packaging bags.
