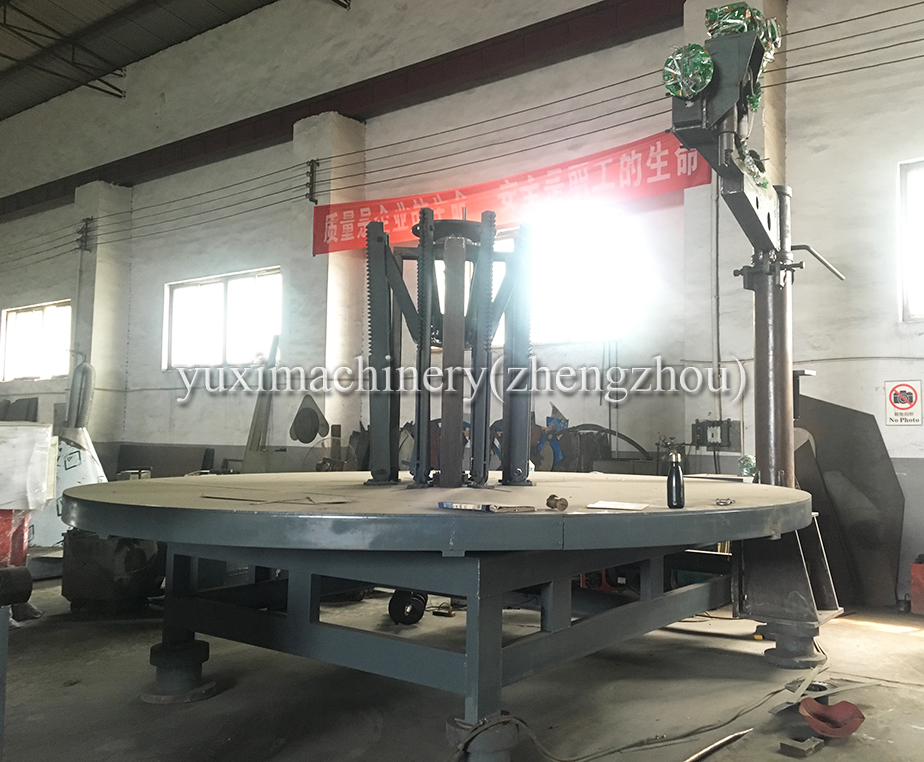

Waste Tire Tread Cutting Machine has two models, which are described as follows:
3M Waste Tire Tread Cutting Machine
Motor power 60kw (cutting knife diameter 650mm with 6 sets of a rotary table with different caliber) sidewall cutting time is 5 minutes/piece, external dimensions 4500mmX1600mmX1800mm. mechanical weight of 3 tons.
4M Waste Tire Tread Cutting Machine
Motor power 110kw (cutting knife diameter 800mm) tire cutting time is 8 minutes/strip; Dimensions of 4500mmX4500mmX1600mm .mechanical weight 4tons.
It can work as a stand-alone machine and it can also be used as an integral part of the tire recycling line to complete tire changes from raw material to granules or powder.
Instructions
1. Turn on the power, first start the main motor, and wait for the motor to run normally, ready to feed;
2. The operator puts the tire top of the cut tire on the rotating roller, starts the slitting machine, starts the hydraulic expansion wheel, and automatically enters the cutting edge with the spinning pressure of the expansion wheel, and automatically cuts the rubber strip around the cutter.
3. Rotary shearing An operator's rubber strip cut out by the slitter is placed in the feeding port of the cutting machine. The cutter will automatically eat and cut into small pieces of 35mm thickness.
4. Keep the hand too close to the tool to keep the distance of 50cm or more. When one strip is cut, re-enter another strip, and then cycle.
